Wolf Wood Burning Fireplace Design
Wolf Wood Burning Fireplace Design
Couldn't load pickup availability

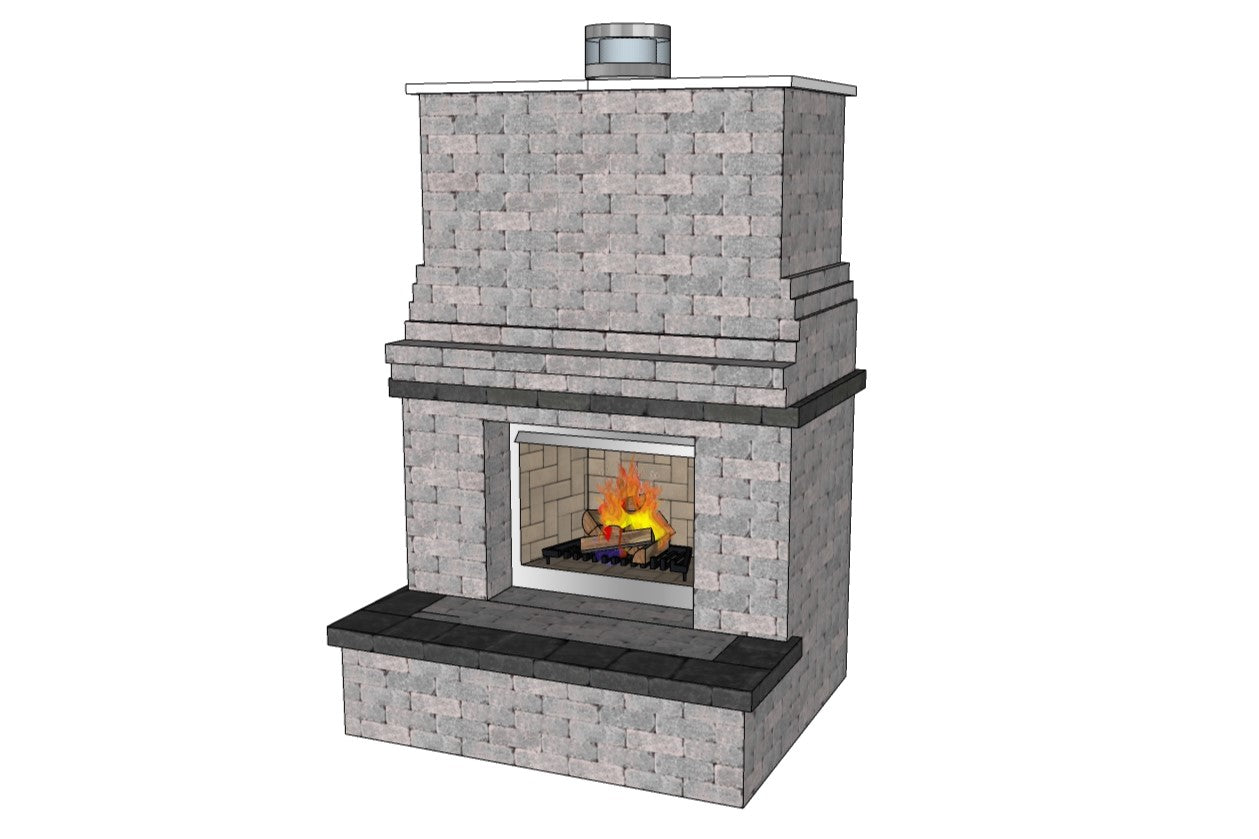

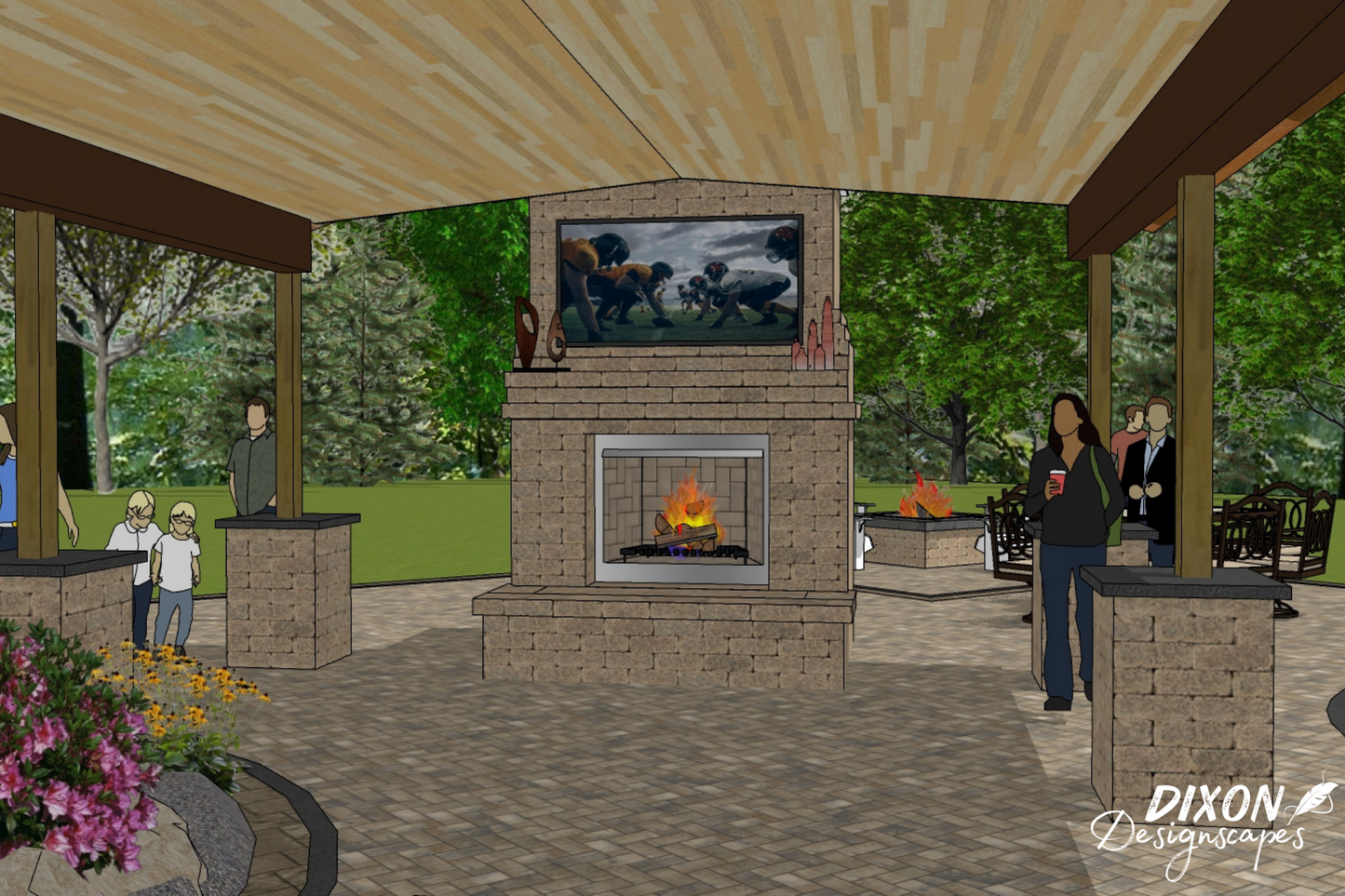

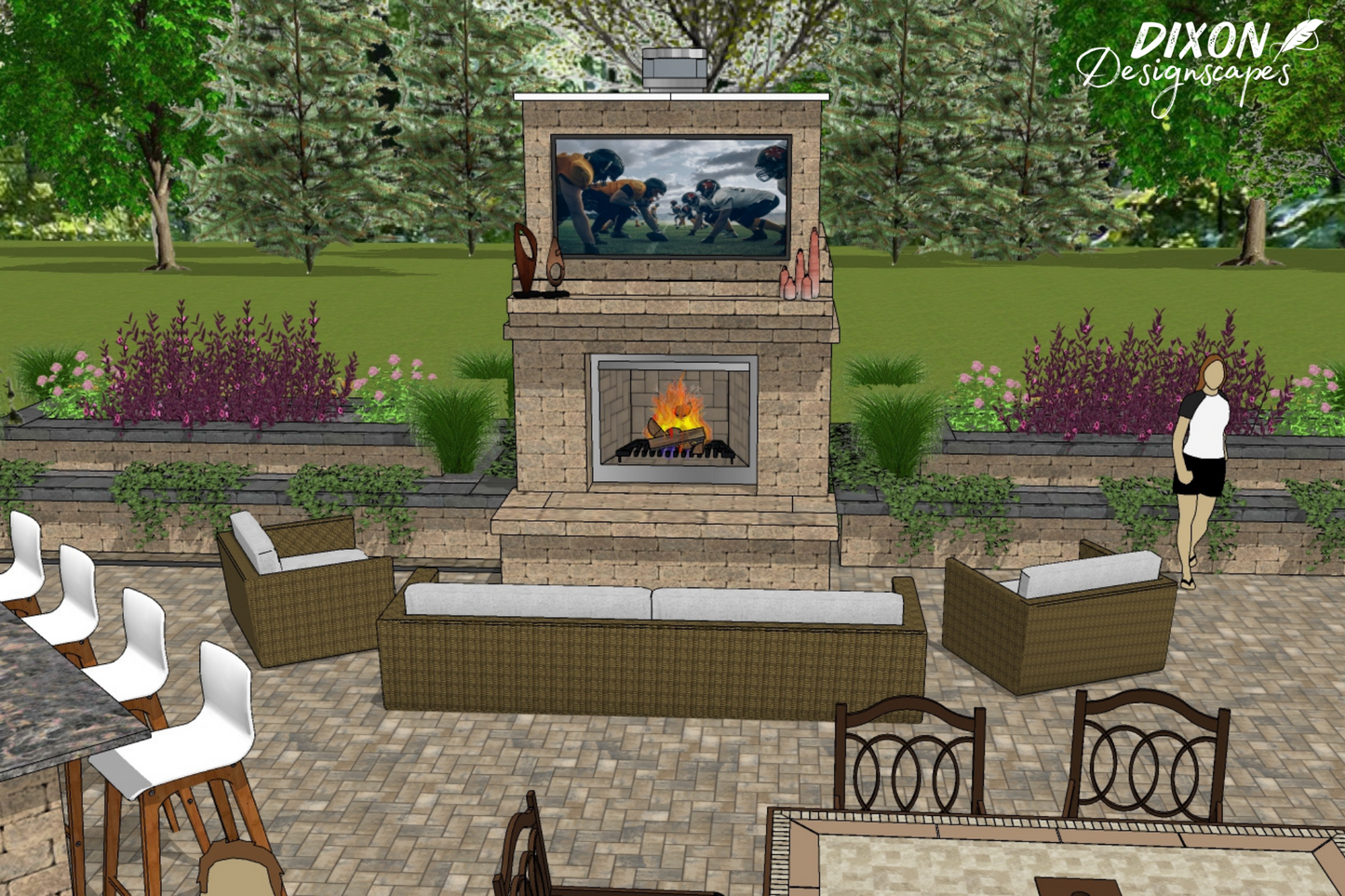

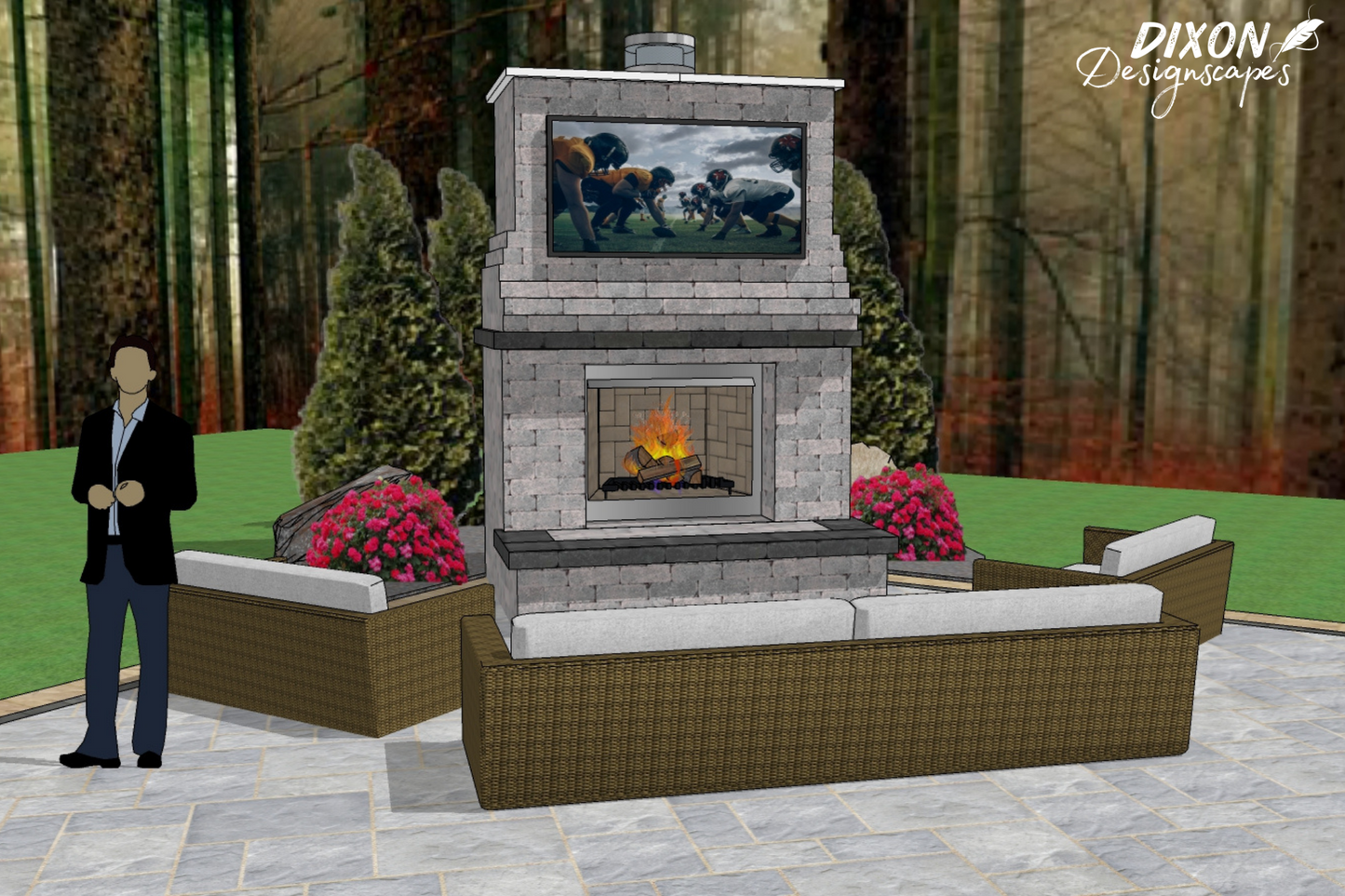

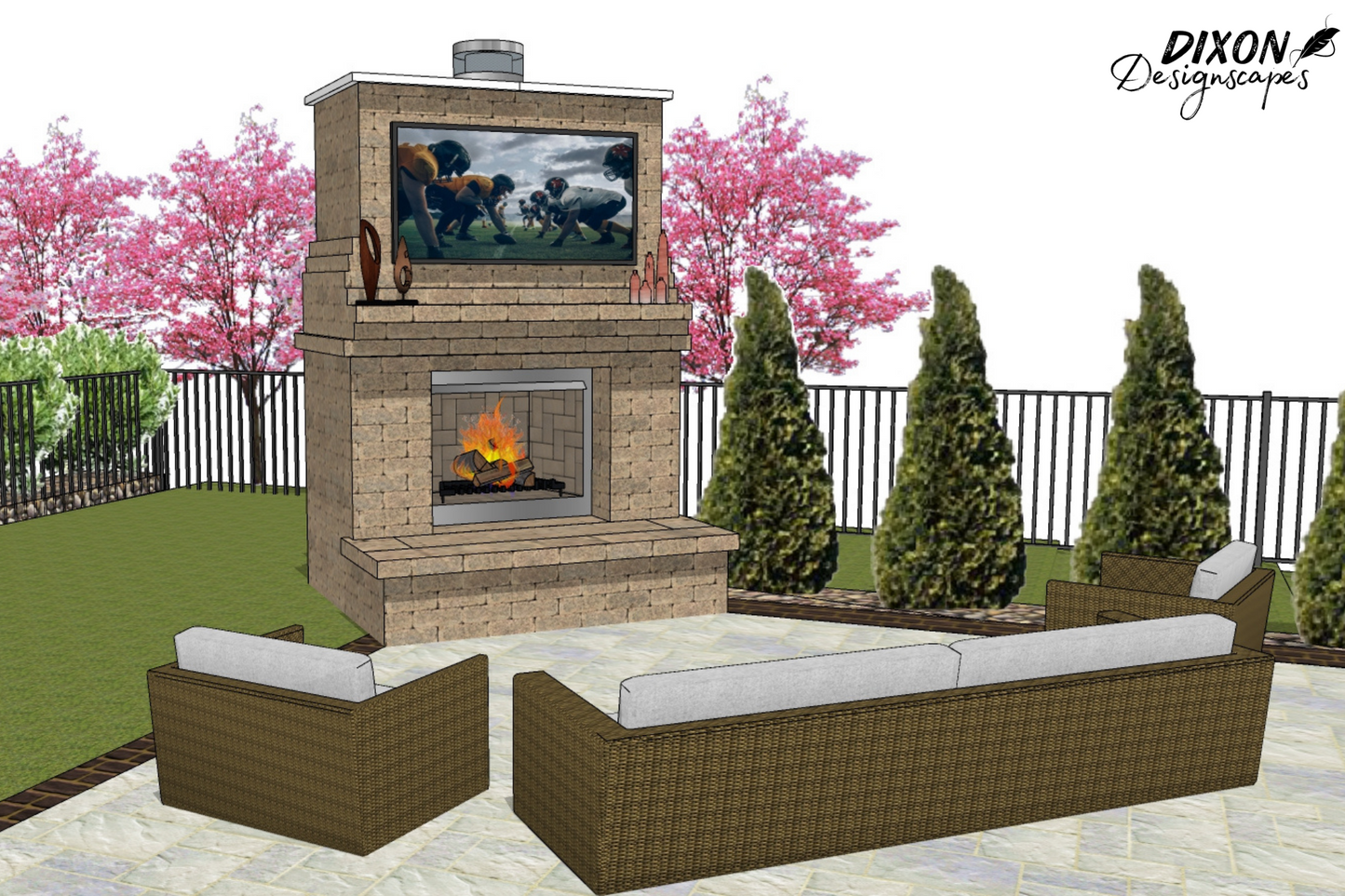

Transform your outdoor space into a cozy and welcoming retreat with the Wolf Wood Burning Fireplace Design! Featuring a sleek chimney design and block accents, this fireplace is perfect for relaxing and entertaining. Plus, it's spacious enough to accommodate a TV if desired!
Design Details
Difficulty Level: Expert
Block Size: 4"x8"x12"
Block Count: 1045
Simple Block Cuts: 99
Specialty Cuts: 18
Lintel: 1
Dimensions: 7'4"W x 6'2"D x 10'10"H
Appliance Details
This design gives you exact cuts to fit the following suggested appliances:
- Superior WRE3042 Outdoor Wood Fireplace Insert
- Superior HS42 Stainless Steel Hood with 4" Brow
- (2) Superior Flue Pipe: 24-8DM
- Superior Flue Pipe Chimney Cap: RT-8DM or RTL-8DM
- Option: Outdoor Television
The design can be modified to fit alternative appliances during installation.
What's Included?
What's Included?

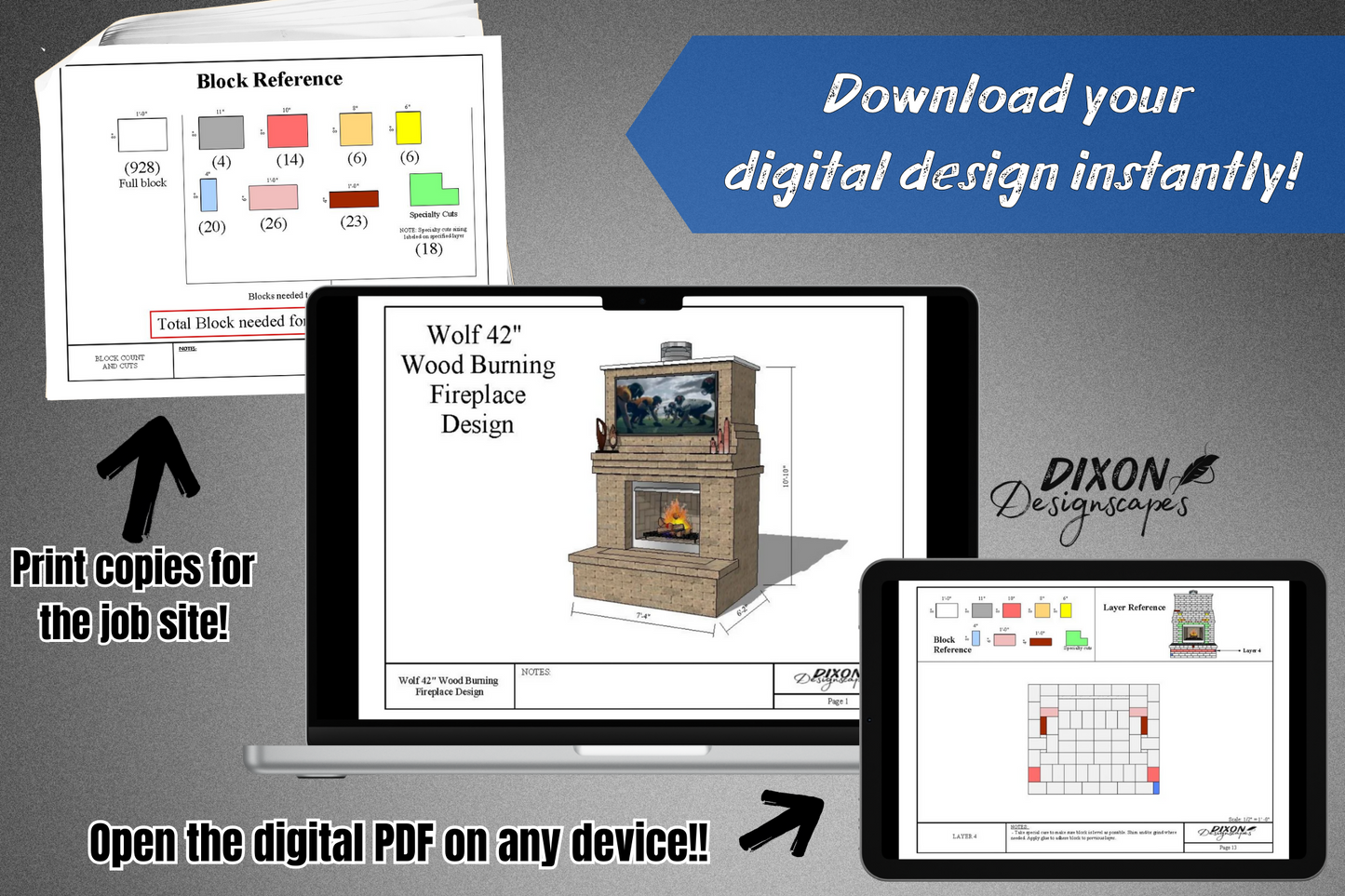

PDF Includes:
- color-coded layer-by-layer building instructions
- complete material and tool list
- detailed project measurements
- basic building instructions with images
- 3D images for easy understanding.
Download Details
Download Details
- Instantly download design after purchase from check out or email.
- PDF design and material list fitted to print on standard 8.5"x11" paper.
- All designs are sold for individual use only. Reproduction and distribution of the designs is prohibited.
Block Details
Block Details

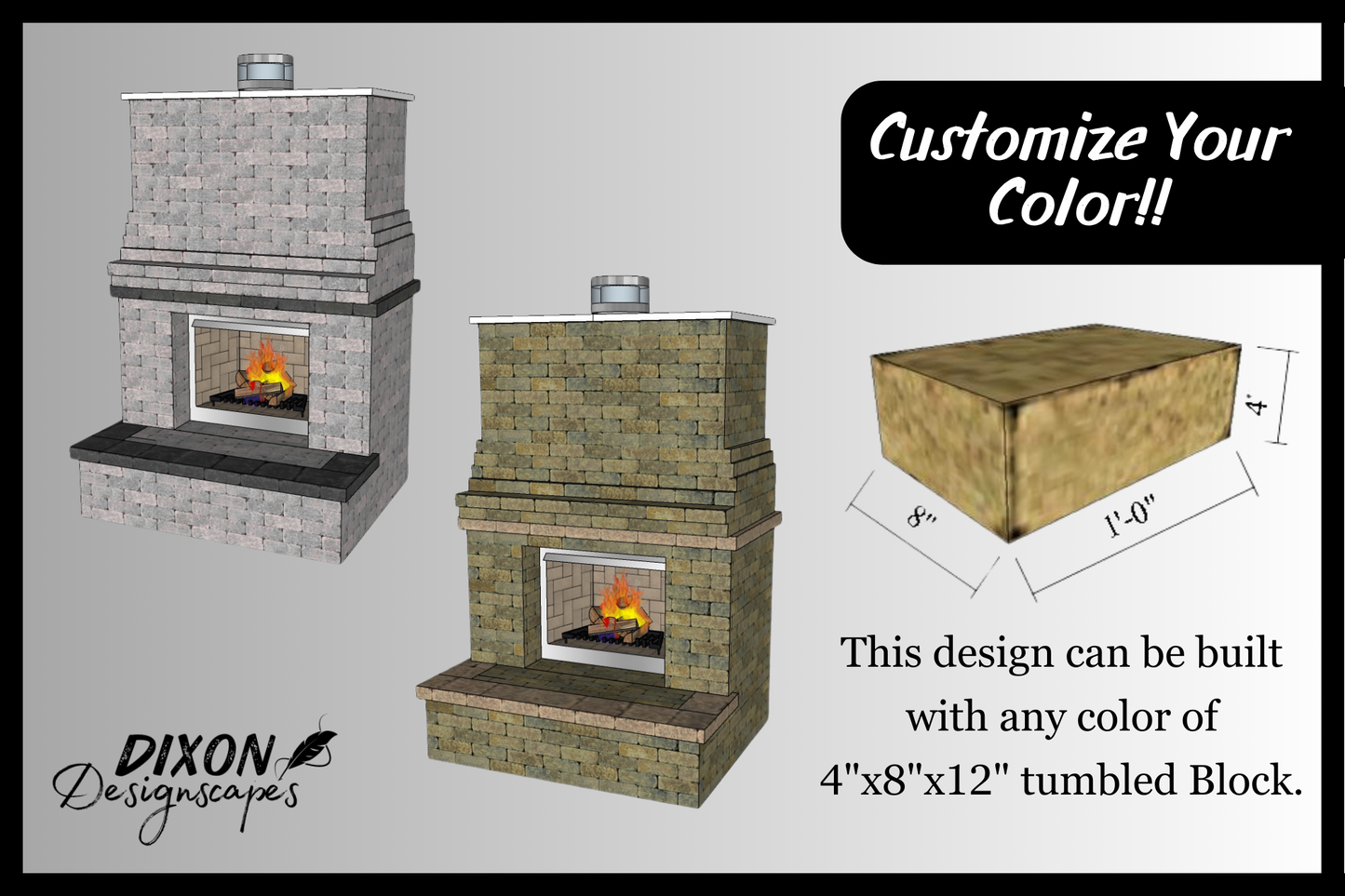

Our designs are built using a universal 4"x8"x12" tumbled landscape block. Simply stack and glue this block to create a stunning hardscape project!
Some designs do require block modifications with both a concrete saw and grinder. Make sure to read the design details listed in the project description to see the required modifications.
You can easily customize the look of your project by choosing your favorite brand and color combination of 4"x8"x12" block.
This block can be purchased at your local hardscape or home improvement store.
Tools Needed for Installation
Tools Needed for Installation
Basic Hardscape Installation Tools
- Masonry Saw with Diamond Blade (Not needed for No Cut Designs)
- Angle Grinder with Diamond Cup Attachment
- Tape Measure
- Level
- Dead Blow Sledge Hammer
- Composite Shims
- Construction Adhesive with Caulking Gun
- Construction Pencils
Concrete Footer Installation Tools
*A concrete footer is not needed on fire pit or garden bed installations.
- Magnesium Concrete Screed
- Concrete Trowel
- Concrete Mixer or Concrete Hoe and Wheelbarrow
- Auger or Post Hole Digger (Fireplace Footers Only)
